1965-1973 Mustang Forged Dynalite Rear Parking Brake Kit4 Piston 12.19" Rotor 2.50 Offset

1965-1973 Mustang Forged Dynalite Rear Parking Brake Kit - 4 Piston 12.19" Rotor 2.50 Offset - Wilwood

Wilwood
SKU:
140-9282-MAIN
$1,059.99 - $1,395.99
Current Stock:
Adding to cart… The item has been added
Description

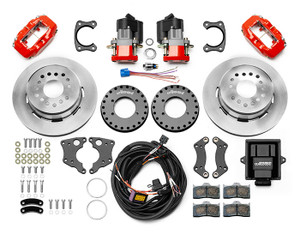

Forged Dynalite Rear Parking Brake Kit - 4 Piston 12.19" Rotor 2.50 Offset

This group of FDL Pro-Series rear disc kits provides a complete solution for popular muscle car rear axles that require a parking brake. Forged billet Dynalite four piston calipers, 12.19” one-piece drum/rotors, and high friction pads provide optimized and balanced braking for all types of custom performance street/strip and show machines. The neatly hidden internal shoe system provides a clean installation with superior static holding power for parking. Optional caliper finishes and rotor designs enable the builder to personalize the style and optimize brake performance for every individual application.

Available Options

  • Brake Calipers are offered in Black or Red as standard options.  Custom brake caliper & logo colors are available upon request.  Please contact us directly to place special orders.
  • Rotors are available in standard configuration or drilled & slotted.

Components & Specifications

Kit Summary
Rear End Axle: Small Ford
Axle Offset: 2.50
Mount Type: Lug
Caliper Type: 4 - Black, Polished or Red Powder Coat
Rotor Diameter: 12.19
Min Wheel Diameter Req'd*: 15
*This Brake Kit may fit 15-inch wheels. Please refer to the wheel clearance diagram to check to see if it will fit your specific wheel.
Calipers
Type: Forged Dynalite Internal
Finish Color: Black, Polished  or Red Powder Coat
Piston Count: 4
Piston 1 Bore (in): 1.38
Piston 2 Bore (in): 1.38
Piston Area (In²): 3
Piston Type: Stainless
Mount Type: Lug
Brake Pad Plate: 7112
Brake Pad Area (In²): 6.36
Brake Pad Volume (In³): 2.1
Pad Compound: BP-10
Rotors
Type: Ultralite HP 32 & Hat or SRP Drilled Rotor & Hat
Style: Plain Face or SRP Drilled & Slotted
Surface Finish: Plain or Black Electro Coat
Material: Iron
Outside Diameter (in): 12.19
Width (in): 0.81
Vane Count: 32 V
Design Type: ULHP or SRP-BLK
Bedded: No
Dynamically Balanced: No

Vehicle Fitment Guide

This kit fits 1965-1973 Ford Mustangs with a V8

Additional Information
Mfr Part #:
140-9282
Brand:
Wilwood
Part Type:
Rear Disc Brake Kit
