1971-1973 Mustang 6 Piston 13" Forged Narrow Superlite Front Disc Brake Kit - Wilwood

1971-1973 Mustang 6 Piston 13" Forged Narrow Superlite Front Disc Brake Kit - Wilwood

Wilwood
SKU:
140-10220-MAIN
$2,274.99 - $2,387.99
Current Stock:
Adding to cart… The item has been added
Description

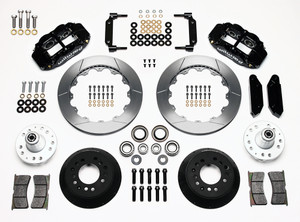

1971-1973 Mustang Forged Narrow Superlite 6R Big Brake Front Brake Kit

FNSL6R billet Forged six-piston calipers with 13”-14” rotors deliver the ultimate combination for braking power and style in this group of kits engineered for traditional non-ABS spindles on American muscle cars and vintage rods. Built exclusively for 17” and larger wheels, SL6 kits enhance tire and suspension upgrades on all types of custom show and high performance dual-purpose street and track machines. A full range of options for caliper finishes and rotor designs are guaranteed to catch the eye of the most discriminating enthusiast while providing optimized brake performance for every individual application.

Available Options

  • Brake Calipers are offered in Black or Red as standard options.  Custom brake caliper & logo colors are available upon request.  Please contact us directly to place special orders.
  • Rotors are available in standard configuration or drilled & slotted.
  • This kit requires a new set of brake lines which can be included.  Please see part #220-9195 for more details.

Components & Specifications

Kit Summary
OE Hub Offset: (Increase / Decrease Track Width) 0.25
Spindle Type: Factory Disc Spindle
Mount Type: Radial
Caliper Type: 6 - Black or Red Powder Coat
Rotor Diameter: 12.88
Min Wheel Diameter Req'd*: 17
*This Brake Kit may fit 17-inch wheels. Please refer to the wheel clearance diagram to check to see if it will fit your specific wheel.
Calipers
Type: Forged Narrow Superlite 6R
Finish Color: Black or Red Powder Coat
Piston Count: 6
Piston 1 Bore (in): 1.62
Piston 2 Bore (in): 1.12
Piston 3 Bore (in): 1.12
Piston Area (In²): 4.04
Piston Type: Stainless
Mount Type: Radial
Brake Pad Plate: 7416
Brake Pad Area (In²): 8.2
Brake Pad Volume (In³): 3.8
Pad Compound: BP-10
Rotors
Type: GT 48 Curved Vane or SRP Drilled Rotor
Style: GT Slotted or SRP Drilled & Slotted
Surface Finish: Black Electro Coat
Material: Spec-37 Iron
Outside Diameter (in): 12.88
Width (in): 1.1
Vane Count: 48 CV
Design Type: GT-BLK or SRP-BLK
Bedded: No
Dynamically Balanced: Yes
Rotor Hats
Type: Big Brake Hat - Flared Bell
Material: Aluminum
Finish Color: Black E-Coat
Hat Offset Dimension (in): 2
Bolt Circle 1: 5 x 4.50
Bolt Circle 2: 5 x 4.75
Stud Diameter - BC 1: 0.52
Stud Diameter - BC 2: 0.52
Stud Diameter - BC 3: 0
Hubs
Type: Hub - Hat Mount
Material: Aluminum
Finish Color: Bare
Mount Style: Hat
Bolt Circle 1: 5 x 4.50
Bolt Circle 2: 5 x 4.75
Stud Diameter - BC 1:

1/2 - 20
Stud Diameter - BC 2: 1/2 - 20



Vehicle Fitment Guide

Make - Model - Year(s)
Ford Fairlane 1970 Disc Brake Spindle
Ford Falcon 1970 Disc Brake Spindle
Ford Mustang 1970 Disc Brake Front Except GT350 & 500 (Please see Part #140-10219-MAIN for the GT350/500 Kit)
Ford Mustang 1973 Disc Brake Front Spindle
Ford Mustang 1971-1972 Disc Brake Spindle
Ford Ranchero 1970-1971 Disc Brake Spindle
Ford Torino 1970-1971 Disc Brake Spindle
Mercury Comet 1971 Disc Brake Spindle
Mercury Cougar 1973 Disc Brake Front Spindle
Mercury Cougar 1970-1972 Disc Brake Spindle
Mercury Cyclone 1970-1971 Disc Brake Spindle
Mercury Montego 1970-1971 Disc Brake Spindle
Notes
Brake Kits are designed to fit OE Factory Spindles. Contact us if you are not using a factory spindle.
Additional Information
Mfr Part #:
140-10220
Brand:
Wilwood
Part Type:
Disc Brake Kit
