1964-1966 Mustang Forged Dynapro Low-Profile Rear Parking Brake Kit6 Cylinder 4 Piston 11" Rotor 2.80 Offset

1964-1966 Mustang Forged Dynapro Low-Profile Rear Parking Brake Kit - 6 Cylinder 4 Piston 11" Rotor 2.80 Offset - Wilwood

Wilwood
SKU:
140-12589-MAIN
$1,173.99
Current Stock:
Adding to cart… The item has been added
Description

1964-1966 Mustang Forged Dynapro Low-Profile Rear Parking Brake Kit - 6 Cylinder 4 Piston 11" Rotor 2.80 Offset

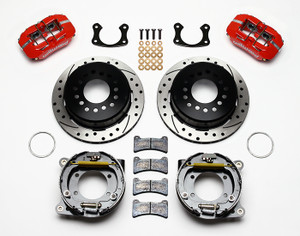

Forged Dynapro Low-Profile Pro-Series rear disc brake kits provide a complete solution for popular muscle car rear axles on applications that require a parking brake assembly and extra clearance for 14.00” to 15.00” rim applications. Forged billet Dynapro Low-Profile four-piston calipers 11.00” one-piece hat and rotor assemblies, and high friction pads provide optimized and balanced braking for all types of custom performance street/strip and show machines. The neatly hidden internal shoe system provides a clean installation with superior static holding power for parking. Optional caliper finishes and rotor designs enable the builder to personalize the style and optimize brake performance for every individual application.

Available Options

  • Calipers are available in black or red powder coat.

Components & Specifications

Kit Summary
Rear End Axle: 7.25 Mustang
Axle Offset: 2.8
Mount Type: Lug
Caliper Type: 4 - Black or Red Powder Coat
Rotor Diameter: 11
Min Wheel Diameter Req'd*: 14
*This Brake Kit may fit 14-inch wheels. Please refer to the wheel clearance diagram to check to see if it will fit your specific wheel.
Calipers
Type: Forged Dynapro Low Profile
Finish Color: Black or Red Powder Coat
Piston Count: 4
Piston 1 Bore (in): 1.38
Piston 2 Bore (in): 1.38
Piston Area (In²): 3
Piston Type: Stainless
Mount Type: Lug
Brake Pad Plate: 4812
Brake Pad Area (In²): 5.1
Brake Pad Volume (In³): 1.71
Pad Compound: BP-10
Rotors
Type: Ultralite HP 32 & Hat
Style: Plain Face
Surface Finish: Plain
Material: Iron
Outside Diameter (in): 11
Width (in): 0.81
Vane Count: 32 V
Design Type: ULHP
Bedded: No
Dynamically Balanced: No

Vehicle Fitment Guide

Make - Model - Year(s)
Ford Falcon 1963-1964 6 Cylinder Spindle Only
Ford Falcon 1965-1966 Drum Brake 6 Cylinder Spindle Only
Ford Mustang 1964-1966 Drum Brake 6 Cylinder Spindle Only
Ford Mustang 1964 w/ Ridetech Hub Spindle
Ford Mustang 1964 w/ Ridetech Pin Spindle
Ford Ranchero 1963-1964 6 Cylinder Spindle Only
Ford Ranchero 1965 Drum Brake 6 Cylinder Spindle Only
Mercury Comet 1963-1964 6 Cylinder Spindle Only
Mercury Comet 1965-1966 Drum Brake 6 Cylinder Spindle Only
Additional Information
Mfr Part #:
140-12589
Brand:
Wilwood
Part Type:
Rear Disc Brake Kit
